Galas Atas ialah pengeluar dan pembekal China PTFE Wrapped 316 Stainless Steel Bushing profesional dan pembekal, jika anda sedang mencari PTFE Wrapped 316 Stainless Steel Bushing terbaik dengan harga yang rendah, rujuk kami sekarang!
Galas Atas ialah pengeluar dan pembekal China PTFE Wrapped 316 Stainless Steel Bushing profesional dan pembekal, jika anda sedang mencari PTFE Wrapped 316 Stainless Steel Bushing terbaik dengan harga yang rendah, rujuk kami sekarang!
Bahan: |
Keluli Tahan Karat + Gangsa+ Ptfe |
Keupayaan bekalan: |
Sesendal Gangsa Bebibir, Sesendal Gangsa Gangsa, Sesendal Gangsa Pelincir Sendiri |
Ciri: |
Galas Biasa Penyelenggaraan Rendah Dan Tanpa Penyelenggaraan |
Ciri Pengeluaran: |
Semak, Semak Kolar, Pencuci, Jalur Atau Rekaan Khas |
penyaduran: |
Timah Atau Saduran Tembaga |
Saiz: |
Saiz Tersuai, Permintaan Tersuai, Semua Standard, Mengikut Permintaan Pelanggan |
pelincir: |
Tanpa minyak |
Butiran Pembungkusan: |
Pembungkusan Standard Eksport |
Cahaya Tinggi: |
Sesendal Pelincir Sendiri PTFE, Sesendal Pelincir Sendiri DIN 1494, Sesendal Keluli Tahan Karat Tanpa Penyelenggaraan |
Cari nama produk keluli tahan karat lengan sesendal 316, kategori, Semak silinder, Semak bebibir, Pencuci tujah, Plat gelongsor, model atau katalog CAD. Dapatkan Sebut Harga Percuma!
Nama Produk
|
Bekalan PTFE Steel Hardened Bush Wrapped Split Sleeve DU Bearing Steel Insert PTFE Bushing
|
bahan
|
Keluli+Gangsa+PTFE+Pb+Pengisi
|
Saiz
|
Kami boleh membangunkan mengikut keperluan khas pelanggan.
|
Standard
|
IATF 16949:2016, SGS, RoHS
|
Suhu bekerja
|
-200~+280â
|
Permukaan Luar
|
Kuprum/Timah
|
terpakai
|
Enjin automotif, Pam gear, Penyerap hentak, Engsel pintu, Tempat duduk, percetakan, tenunan, tembakau dan jentera gimnastik, silinder pneumatik.
|
Di (mm) | lakukan (mm) | B (mm) | galas | aci | Diameter terbesar (mm) | Diameter minimum (mm) | Kelegaan maksimum (mm) | Kelegaan minimum (mm) | |
0203DU | 2 | 3.5 | 3 | H6 | h6 | 2.048 | 2 | 0.054 | 0 |
0205DU | 2 | 3.5 | 5 | H6 | h6 | 2.048 | 2 | 0.054 | 0 |
0303DU | 3 | 4.5 | 3 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
0305DU | 3 | 4.5 | 5 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
0306DU | 3 | 4.5 | 6 | H6 | h6 | 3.048 | 3 | 0.054 | 0 |
0403DU | 4 | 5.5 | 3 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
0404DU | 4 | 5.5 | 4 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
0406DU | 4 | 5.5 | 6 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
0410DU | 4 | 5.5 | 10 | H6 | h6 | 4.048 | 4 | 0.056 | 0 |
0505DU | 5 | 7 | 5 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
0508DU | 5 | 7 | 8 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
0510DU | 5 | 7 | 10 | H7 | f7 | 5.055 | 4.99 | 0.077 | 0 |
0604DU | 6 | 8 | 4 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
0606DU | 6 | 8 | 6 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
0608DU | 6 | 8 | 8 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
0610DU | 6 | 8 | 10 | H7 | f7 | 6.055 | 5.99 | 0.077 | 0 |
0705DU | 7 | 9 | 5 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
0710DU | 7 | 9 | 10 | H7 | f7 | 7.055 | 6.99 | 0.083 | 0.003 |
0806DU | 8 | 10 | 6 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
0808DU | 8 | 10 | 8 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
0810DU | 8 | 10 | 10 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
0812DU | 8 | 10 | 12 | H7 | f7 | 8.055 | 7.99 | 0.083 | 0.003 |
1006DU | 10 | 12 | 6 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
1008DU | 10 | 12 | 8 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
1010DU | 10 | 12 | 10 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
1012DU | 10 | 12 | 12 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
1015DU | 10 | 12 | 15 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
1020DU | 10 | 12 | 20 | H7 | f7 | 10.058 | 9.99 | 0.086 | 0.003 |
1208DU | 12 | 14 | 8 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
1210DU | 12 | 14 | 10 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
1212DU | 12 | 14 | 12 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
1215DU | 12 | 14 | 15 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
1220DU | 12 | 14 | 20 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
1225DU | 12 | 14 | 25 | H7 | f7 | 12.058 | 11.99 | 0.092 | 0.006 |
1310DU | 13 | 15 | 10 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
1320DU | 13 | 15 | 20 | H7 | f7 | 13.058 | 12.99 | 0.092 | 0.006 |
1405DU | 14 | 16 | 5 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
1410DU | 14 | 16 | 10 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
1412DU | 14 | 16 | 12 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
1415DU | 14 | 16 | 15 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
1420DU | 14 | 16 | 20 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
1425DU | 14 | 16 | 25 | H7 | f7 | 14.058 | 13.99 | 0.092 | 0.006 |
1510DU | 15 | 17 | 10 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
1512DU | 15 | 17 | 12 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
1515DU | 15 | 17 | 15 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
1520DU | 15 | 17 | 20 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
1525DU | 15 | 17 | 25 | H7 | f7 | 15.058 | 14.99 | 0.092 | 0.006 |
1610DU | 16 | 18 | 10 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
1612DU | 16 | 18 | 12 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
1615DU | 16 | 18 | 15 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
1620DU | 16 | 18 | 20 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
1625DU | 16 | 18 | 25 | H7 | f7 | 16.058 | 15.99 | 0.092 | 0.006 |
1720DU | 17 | 19 | 20 | H7 | f7 | 17.061 | 16.99 | 0.095 | 0.006 |
1810DU | 18 | 20 | 10 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
1815DU | 18 | 20 | 15 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
1820DU | 18 | 20 | 20 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
1825DU | 18 | 20 | 25 | H7 | f7 | 18.061 | 17.99 | 0.095 | 0.006 |
2010DU | 20 | 23 | 10 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
2015DU | 20 | 23 | 15 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
2020DU | 20 | 23 | 20 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
2025DU | 20 | 23 | 25 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
2030DU | 20 | 23 | 30 | H7 | f7 | 20.071 | 19.99 | 0.112 | 0.01 |
2215DU | 22 | 25 | 15 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
2220DU | 22 | 25 | 20 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
2225DU | 22 | 25 | 25 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
2230DU | 22 | 25 | 30 | H7 | f7 | 22.071 | 21.99 | 0.112 | 0.01 |
2415DU | 24 | 27 | 15 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
2420DU | 24 | 27 | 20 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
2425DU | 24 | 27 | 25 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
2430DU | 24 | 27 | 30 | H7 | f7 | 24.071 | 23.99 | 0.112 | 0.01 |
2515DU | 25 | 28 | 15 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
2520DU | 25 | 28 | 20 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
2525DU | 25 | 28 | 25 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
2530DU | 25 | 28 | 30 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
2550DU | 25 | 28 | 50 | H7 | f7 | 25.071 | 24.99 | 0.112 | 0.01 |
2815DU | 28 | 32 | 15 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
2820DU | 28 | 32 | 20 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
2825DU | 28 | 32 | 25 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
2830DU | 28 | 32 | 30 | H7 | f7 | 28.085 | 27.99 | 0.126 | 0.01 |
3010DU | 30 | 34 | 10 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
3015DU | 30 | 34 | 15 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
3020DU | 30 | 34 | 20 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
3025DU | 30 | 34 | 25 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
3030DU | 30 | 34 | 30 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
3040DU | 30 | 34 | 40 | H7 | f7 | 30.085 | 29.99 | 0.126 | 0.01 |
3220DU | 32 | 36 | 20 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
3230DU | 32 | 36 | 30 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
3240DU | 32 | 36 | 40 | H7 | f7 | 32.085 | 31.99 | 0.135 | 0.015 |
3520DU | 35 | 39 | 20 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
3530DU | 35 | 39 | 30 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |
3535DU | 35 | 39 | 35 | H7 | f7 | 35.085 | 34.99 | 0.135 | 0.015 |

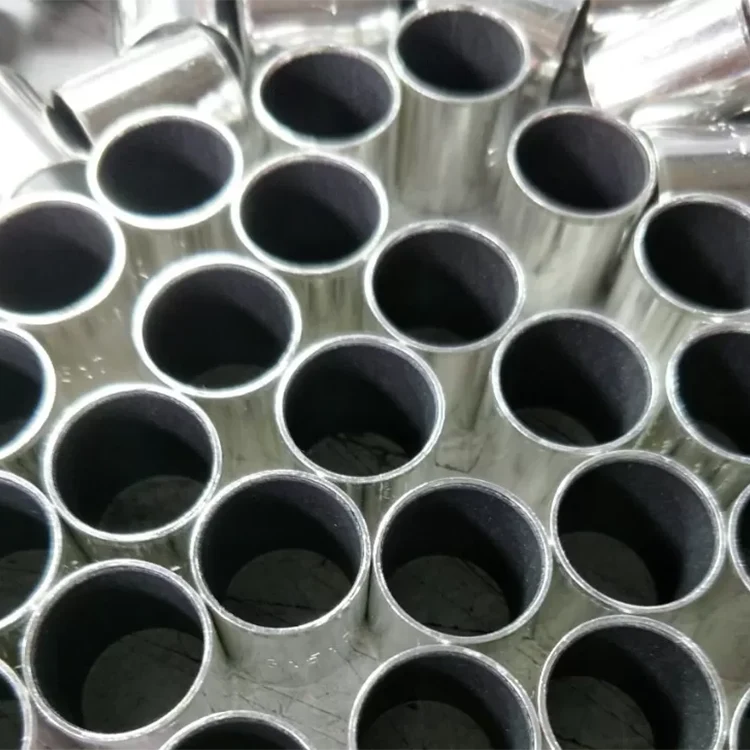

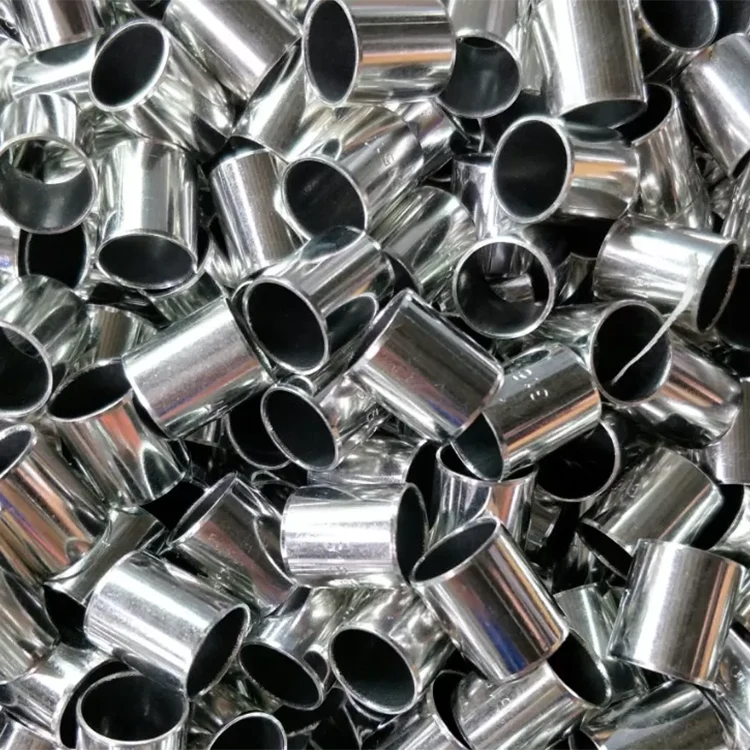

Sesendal terbelah dibalut dihasilkan daripada ID 3mm hingga 400mm, sesendal berbalut, jenis sambungan terbelah, galas sesendal bersandar keluli tahan karat 316 atau 304/PTFE, DIN 1494/ISO 3547, Tanpa penyelenggaraan.
Bahan bebas kakisan dan bebas penyelenggaraan kerana keluli tahan karat dan PTFE. Prestasi gelongsor dan haus yang luar biasa.
Syarat aplikasi yang disyorkan ialah beban tinggi, suhu tinggi dan persekitaran tercemar tinggi dengan pelinciran gris atau minyak. Ia mempunyai rintangan haus yang sangat baik. Bahan ini digunakan secara meluas dalam sesendal kingpin, pam omboh, jentera pertanian. Ia amat sesuai untuk aplikasi di mana pelincir tidak boleh dibekalkan secara berterusan atau berulang kali.
